• Length:18' 2"
• Hull Length: 18' 2"
• Beam: 102"
• Max. Recommended HP: 175 HP
• Engine Shaft Length: 25"
• Inside Depth: 28"
• Hull Thickness: 0.125"
• Chine Width: 88"
• Fuel Capacity: 40 gal.
• Livewell Capacity: 20 gal.
• Baitwell Capacity: 7 gal.
• Total Person, Motor, Gear: 1650 lbs.
• Approximate Boat Weight: 1950 lbs.
• Rod Box Length - Port: 8' 6"
• Rod Box Length - Center: 7' 6"
• Max. Person Capacity: 6 persons
• Tandem Axle Trailer GVWR: 4200 lbs.
• Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 23' 10"
• Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 21' 9"
• Width On Trailer: 102"
• Height On Trailer: 84"

Custom Details

• Special 55th Anniversary badging

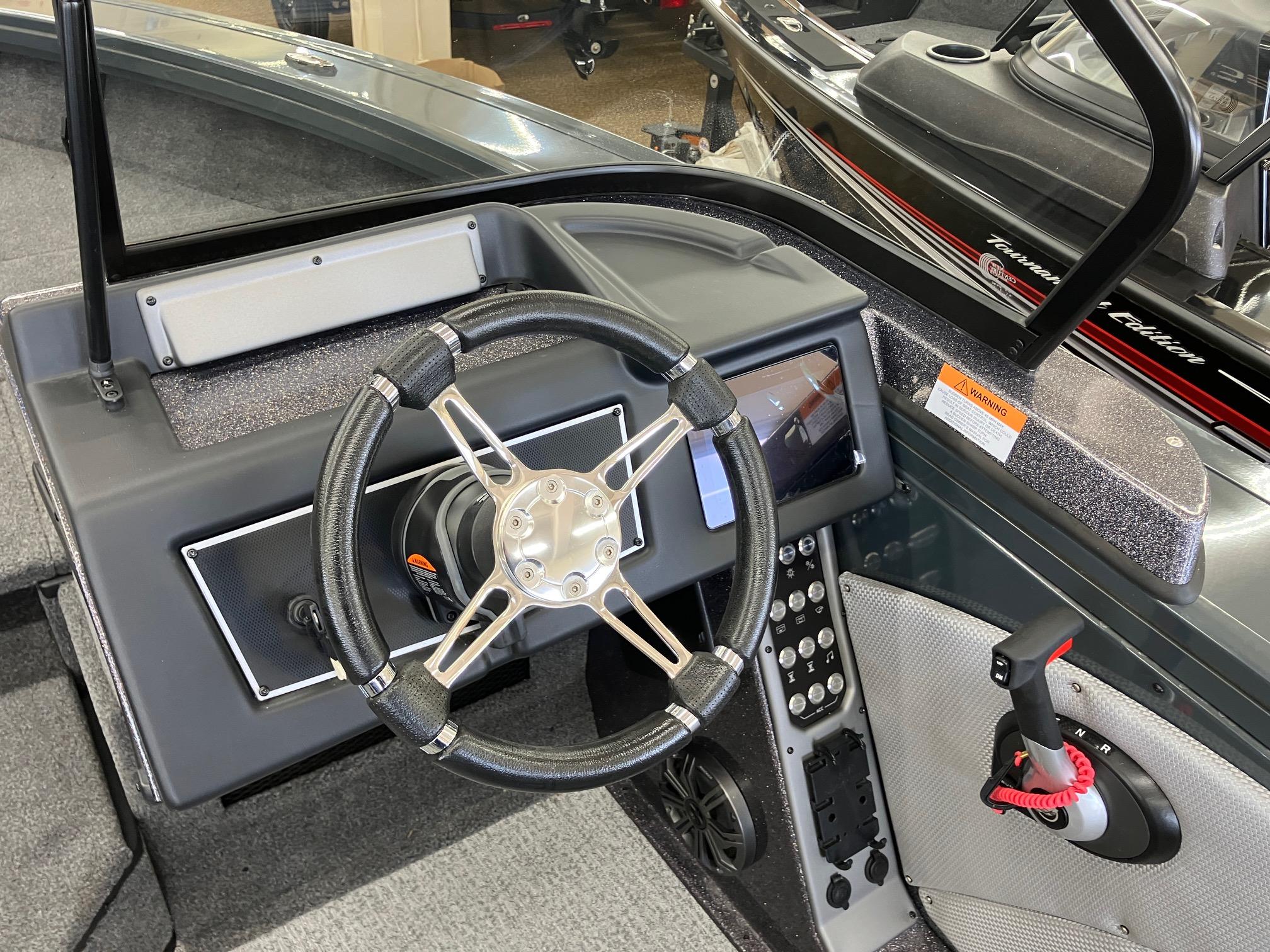

• NEW Redesigned fiberglass consoles w/ flushmounted R.I.D.E. System Monitor, gimbal-mounted depthfinder & easy touch switching

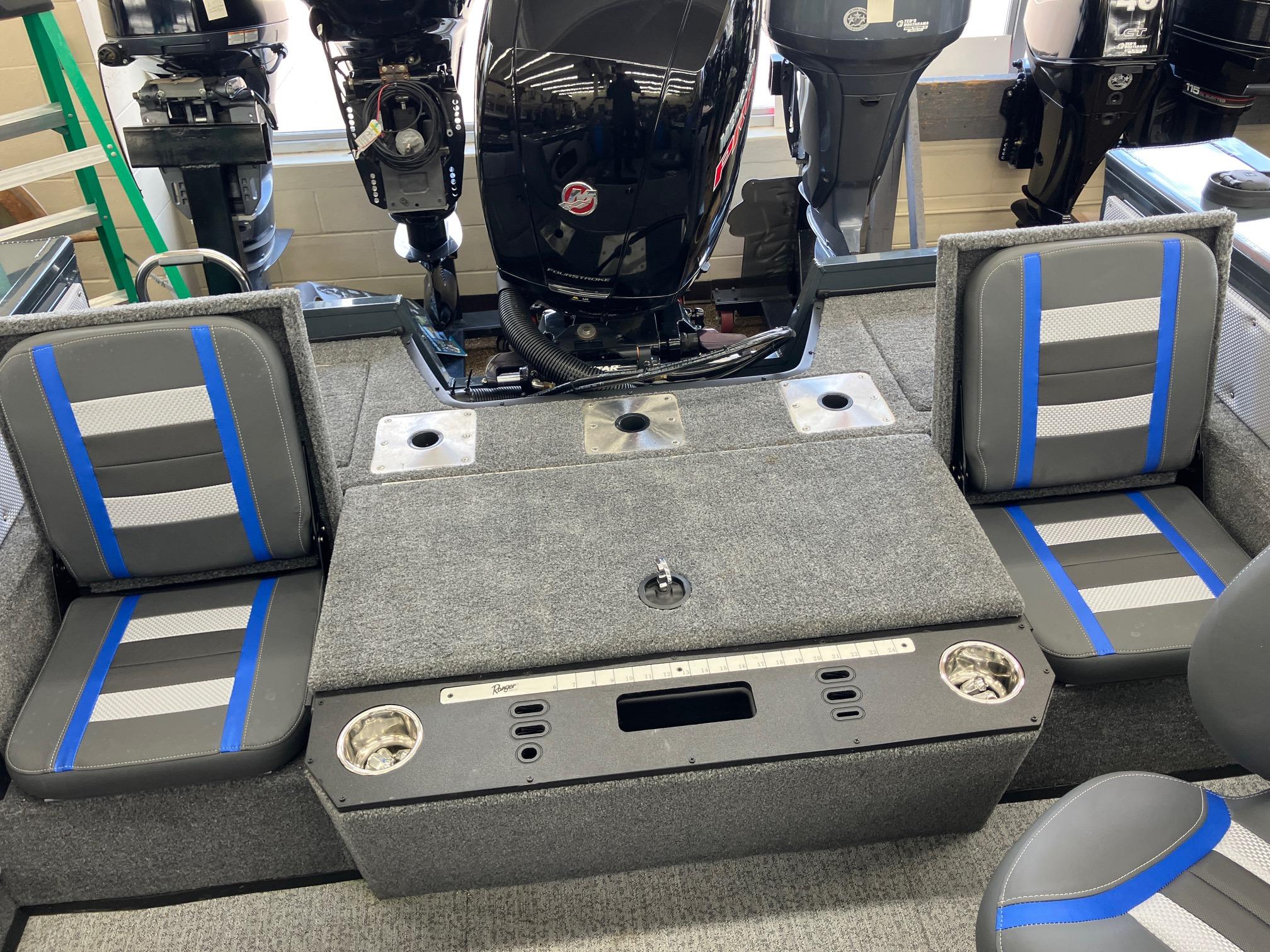

• Custom fitted marine upholstery- (2) matching fishing seats

• Driver and passenger air ride seats w/ seat slides

• High gloss paint w/ custom chrome Ranger® graphics

• Choice of colors: white, crystal red, charcoal metallic, midnight blue, carbon, fusion electra lime green, fusion electra blue

• Durable marine grade carpet

• Non-skid marine grade vinyl cockpit flooring

• In-floor cooler

Electronics

• Lowrance® HOOK Reveal 7 Combo console
• MinnKota® Terrova 80lb / 60in / US2 / i-Pilot / BT / w/Foot Pedal 24V
• NEW - Ranger R.I.D.E. System Monitor - 7" Touchscreen that displays all boat and engine data at a glance, eliminating the need for gauges

• 6-gauge trolling motor wiring

• Trolling motor battery trays

• On-board lithium charger, 6A x 3 bank charger

• 12V power and USB outlets on port and starboard side panels

• Bilge pump

• Removable navigation lights

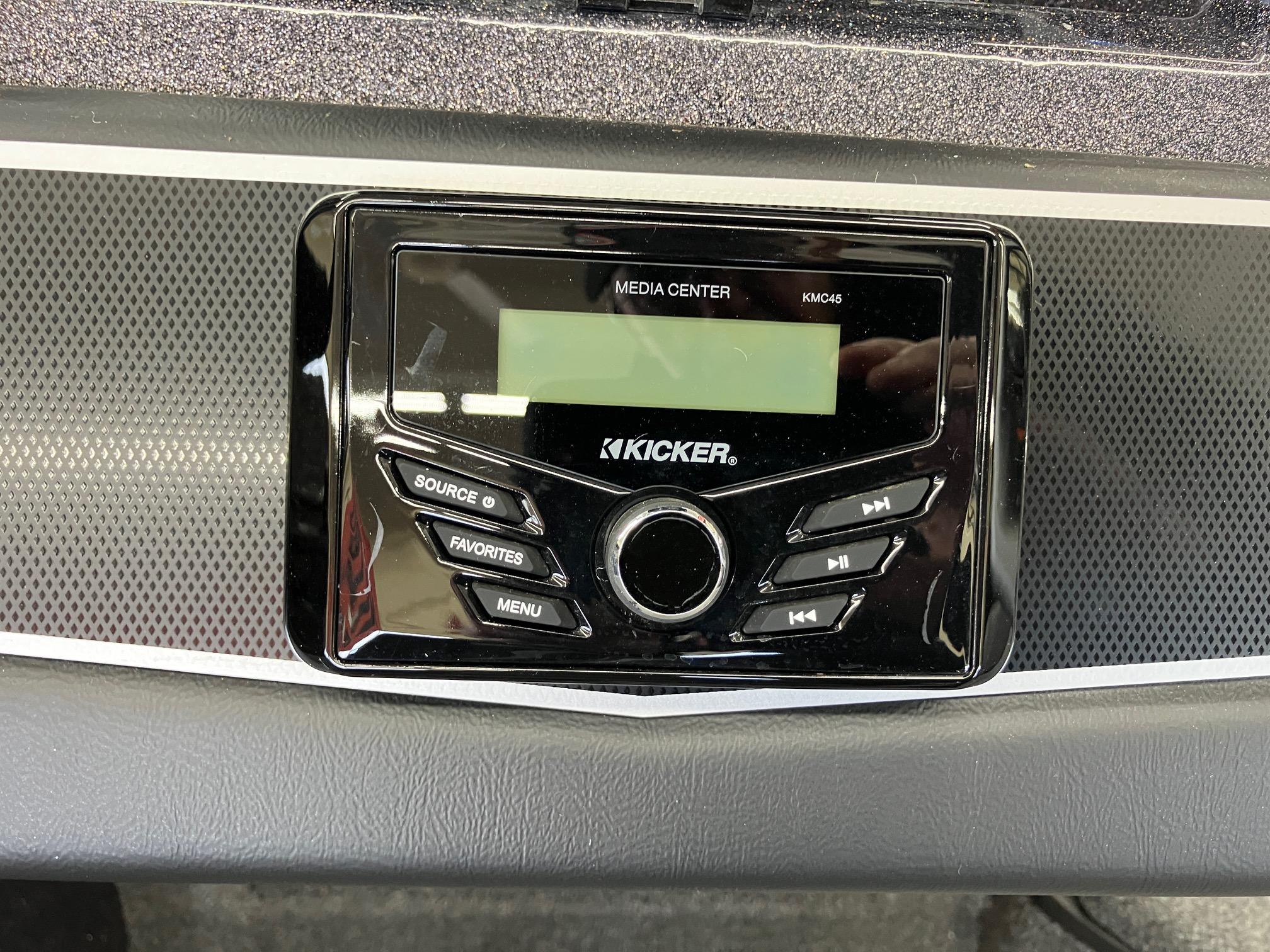

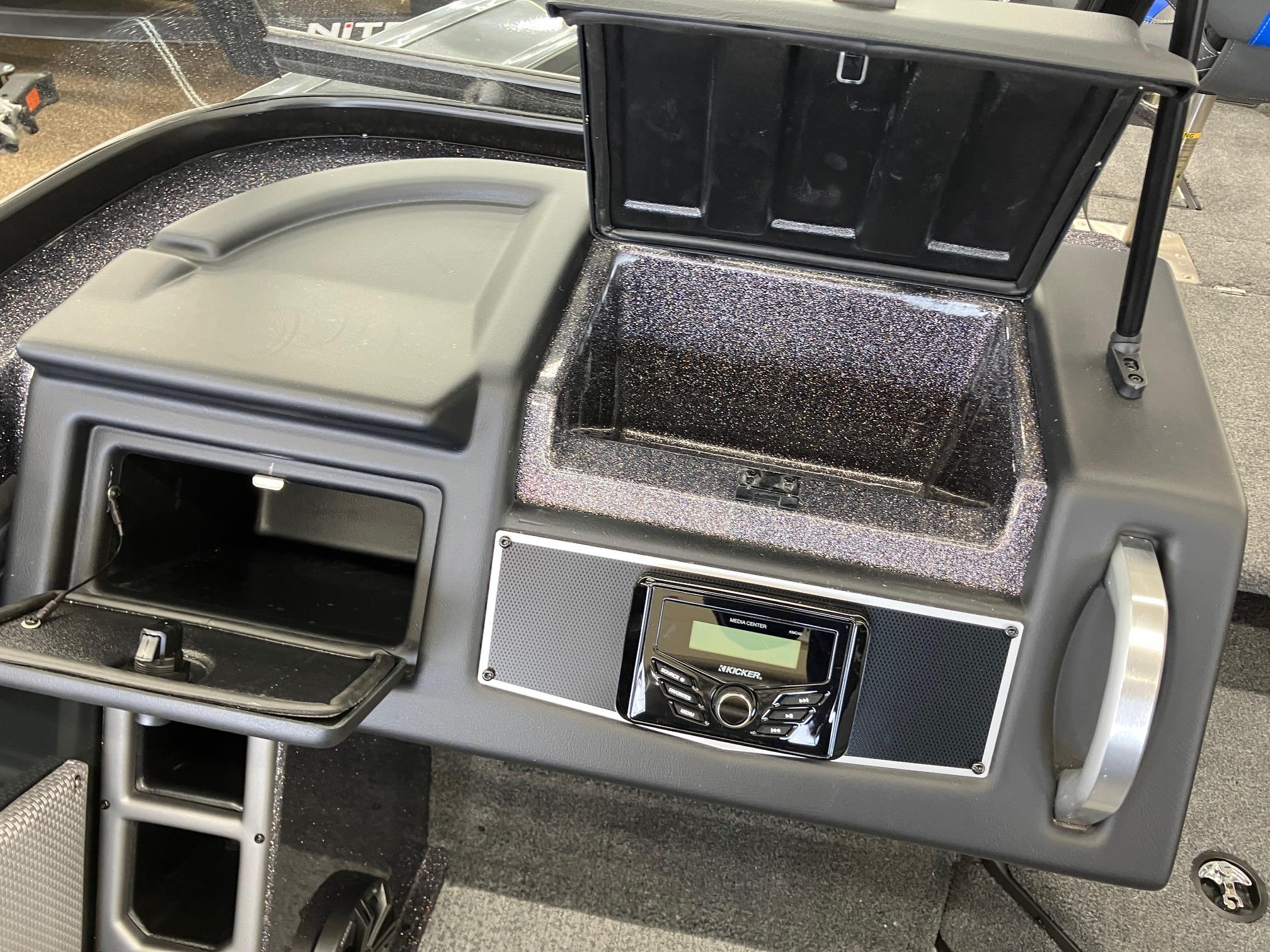

• Stereo w/ 2 speakers

Power/Performance

• Trolling motor pedal lid (hinged lid over recessed trolling motor pedal)

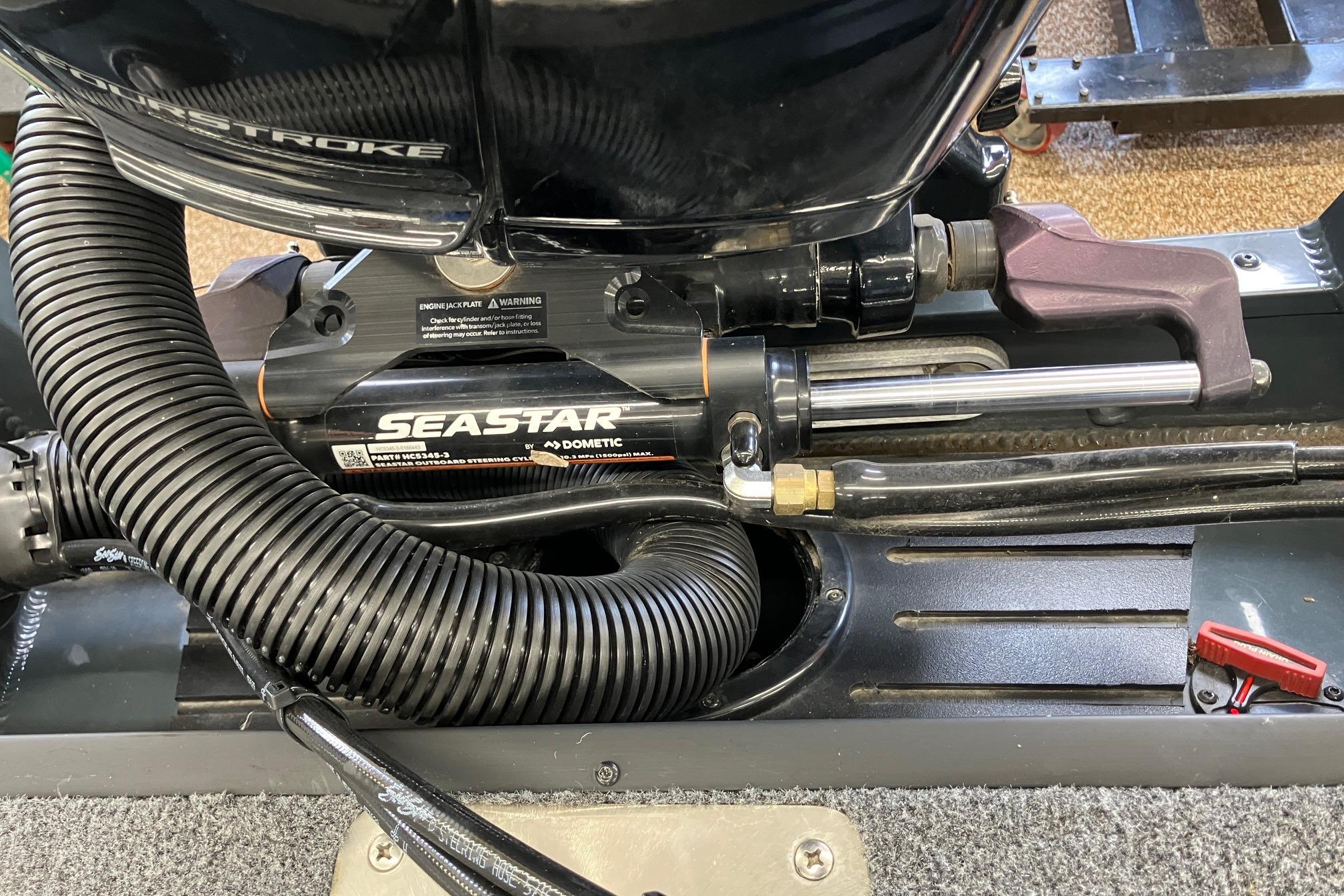

• Tilt hydraulic steering

• Competition steering wheel

• Flush-mounted remote throttle control

• Prop

• Power trim

• Bow trim & navigation switches

• Aerated livewell/ baitwell on front deck

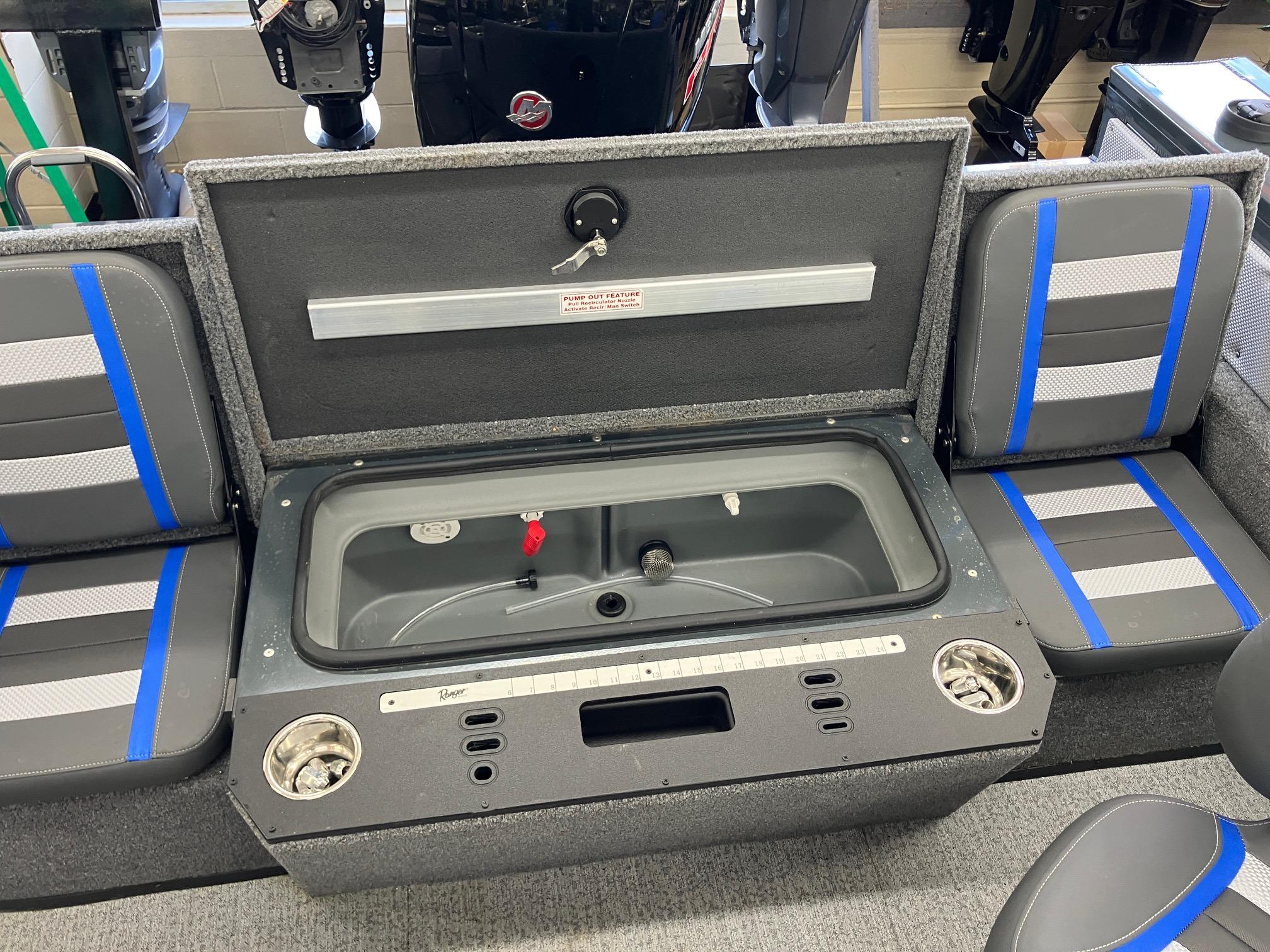

• Aerated divided livewell w/ timer on rear deck

Safety/Comfort

• Aluminum transom

• Automatic bilge

• Built-in horn assembly

• Pull-up tie cleats (4)

• Bow and stern eyes

• Grab handle at console

• All-aluminum floor & decks

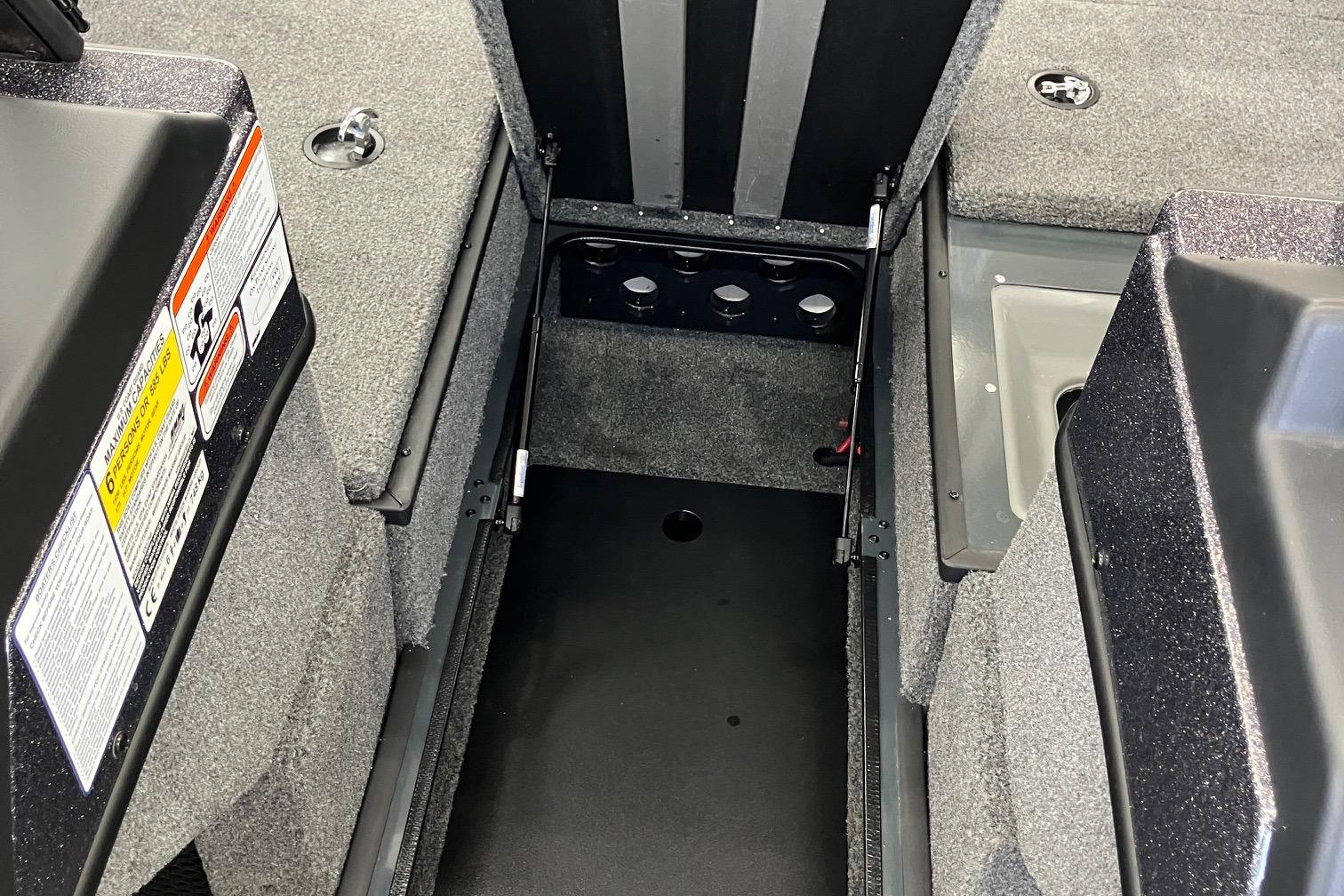

• Lockable storage

• Upright, level flotation

• Lockable rod storage

• 5052 H34 marine grade aluminum

• Foam-filled one-piece construction

• All-welded construction

• Stainless steel boarding ladder

• Remote drain plug

Trailer Features

• Custom built Ranger Trail® trailer / tandem axle

• 14" aluminum wheels

• Swing jack

• Spare tire carrier w/ matching spare

• Boarding steps and safety handle

• Leaf spring axle

• Retractable trailer tie downs

• Integrated load guides

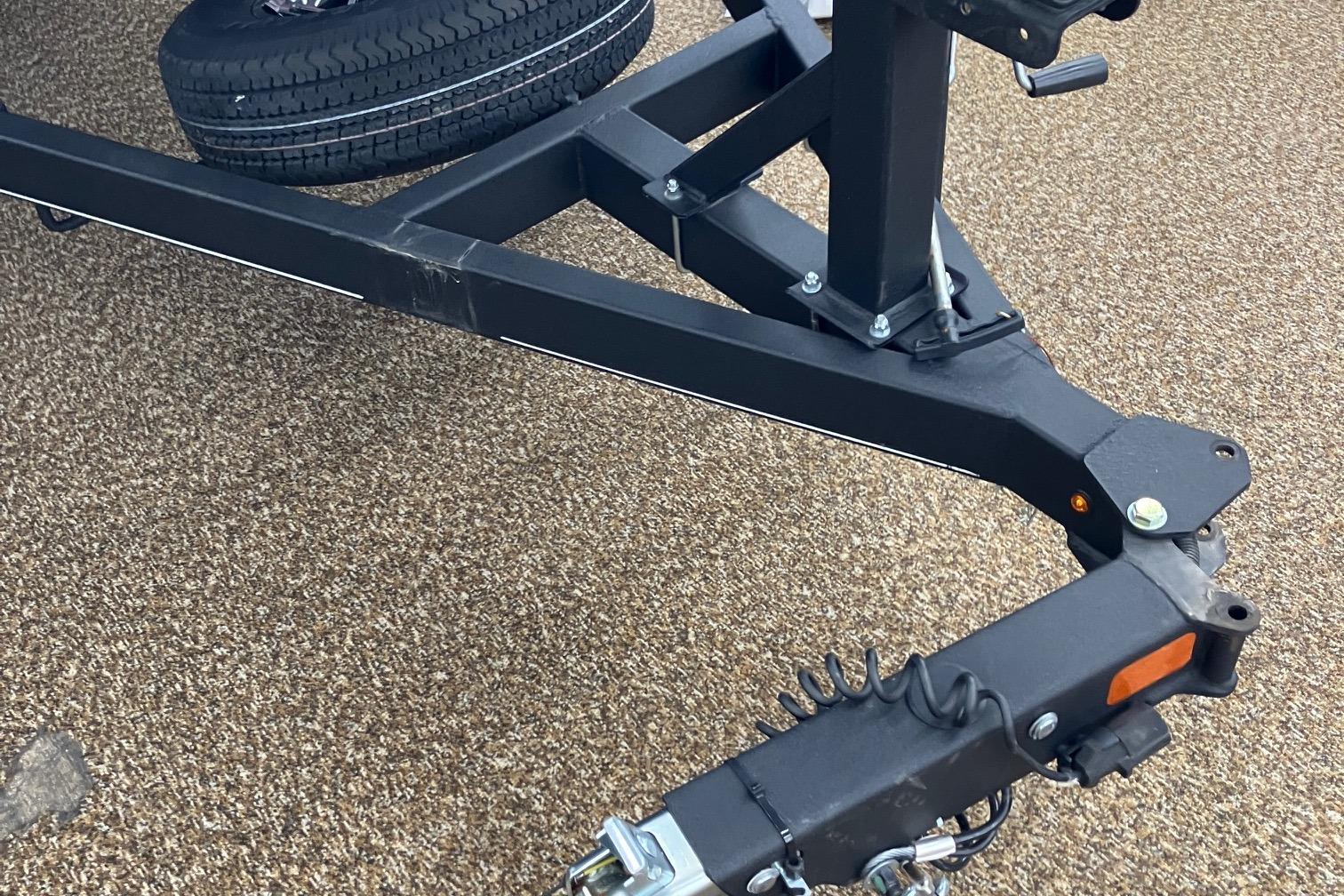

• Swing-away tongue

• NMMA®/NATM certified

• Waterproof lights
